Standard International Rectifier Diode GS5M 5A 1000V Surface Mount Diode

Name: Standard International Rectifier Diode GS5M 5A 1000V Surface Mount Diode
Brand: Huixin
Price: 1 USD

Brand Name : Huixin

Model Number : GS5M DO - 214AB (SMC)

Certification : ISO14001 ISO9001 ISO/TS16949 UL

Place of Origin : China

MOQ : 5000 PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Cash

Supply Ability : 1 billion pieces/ Month

Delivery Time : 2-4Weeks

Packaging Details : 5000pcs/reel/box

Type : International Rectifier Diode

Package : SMC

Package Type : Surface Mount Diode

Sample Time : 5-7 Days

Max. Forward Current : 5A

Max. Reverse Voltage : 1000V

Material : Silicon

Mounting position : Any

Lead Time : 2WEEKS

Weight : 0.225grams

Contact Now

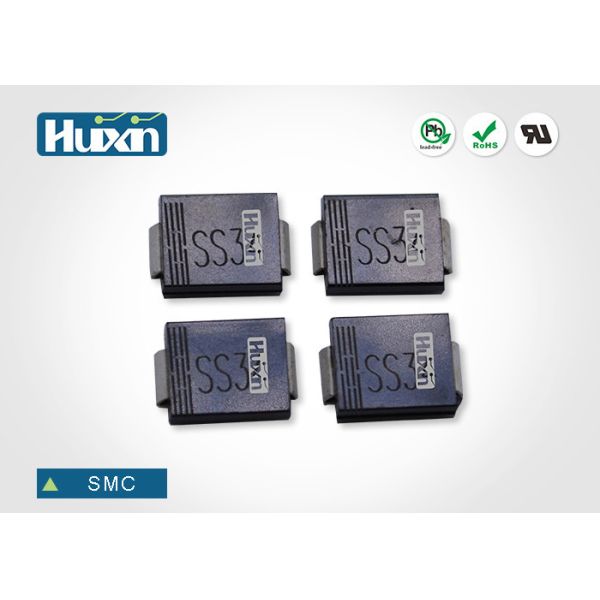

GS5M 5A Standard Rectifiers International Rectifier Diode

Standard International Rectifier Diode GS5M 5A 1000V Surface Mount Diode

GS5A~GS5M SMC Datasheet.pdf

Features:

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Idea for printed circuit board
For surface mounted applications
Glass passivated Junction chip
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed

Mechanical Data:

Case : JEDEC DO-214AB Molded plastic body over passivated chip
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Color band denotes cathode end
Mounting Position : Any
Weight : 0.008 ounce, 0.225 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter		SYMBOLS	GS5A	GS5B	GS5D	GS5G	GS5J	GS5K	GS5M	UNITS

Maximum Repetitive Peak Reverse Voltage		VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage		VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage		VDC	50	100	200	400	600	800	1000	Volts
Maximum Average Forward Rectifier Current at TL=100°C		IF(AV)	5							Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load		IFSM	150							Amps
Maximum Instantaneous Forward Voltage at 5A		VF	1.1							Volts
Maximum DC Reverse Current at rated DC blocking voltage	TA=25°C	IR	5							μA
	TA=125°C		500

Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

Product Tags:

international rectifier diode

standard rectifier diode
